Embedded AC Monitors

Monitoring Made Easy®



Packet Power offers a versatile range of full power meters designed to support 1 to 12 current sensors and operate seamlessly on line-powered circuits up to 480V. Select from solid core, split core, or Rogowski coil sensors with a wide capacity range of 15 to 10,000 amps. Every system arrives fully configured and ready to install, significantly minimizing setup time and reducing costs.

Download Brochure

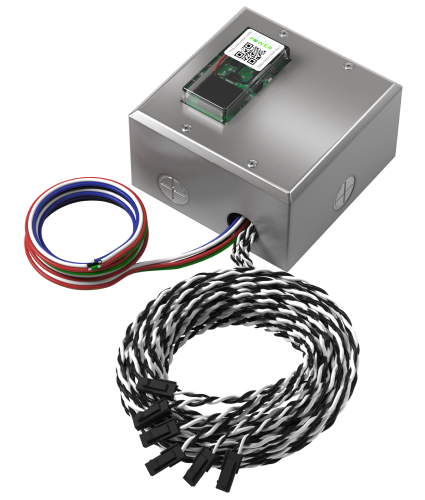

Packet Power MP277 Embedded AC Energy Monitor

Features
  • 15A to 10,000A single & three-phase circuits; 100V to 480V AC

  • Full power monitoring

  • Full power measures V, A, VA, W, PF, Wh, Hz, IR pulse output

  • Choice of split core CTs, solid core CTs, or flexible Rogowski coil sensors

  • Enclosure options available including DIN clip, NEMA-3R, and Double Deep Gangbox

  • Buy the monitor alone or as a fully configured system ready to be installed

  • Fully configurable multiple
    sub-circuit metering support
  • No data communications cables

  • Net metering capable

  • Graphical display

  • Ideal for monitoring high-value circuits to track loads from HVAC, generators, motors, and sub-panels

  • Supports standard SNMP, Modbus, BACnet/IP, & MQTT protocols

  • Secure wireless proprietary mesh network proven to work in facilities worldwide

  • Designed & Built in the USA

  • Compact enough to fit in many top PDU brands

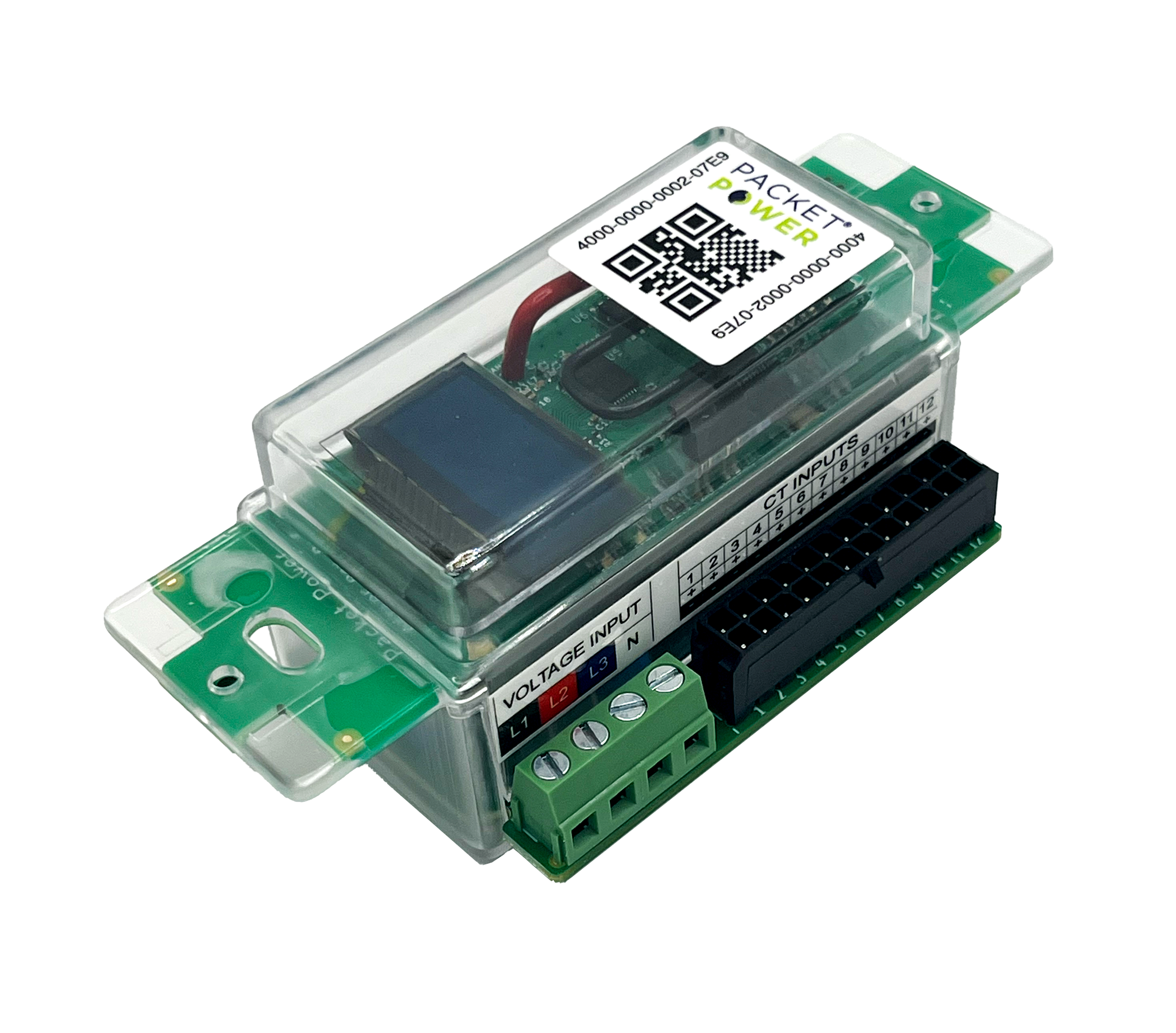

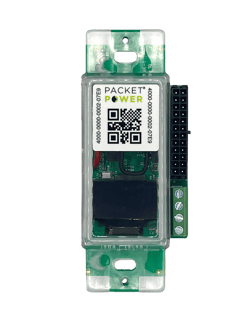

MP277 Embedded AC Power Monitor

MP277

100-480V/277V AC
1-12 CTs

106 x 45 x 40 mm
(4.2 x 1.8 x 1.6 in)

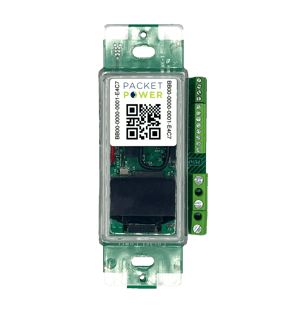

MP480 Embedded AC Power Monitor

MP480

480V or 600/347V AC
1-6 CTs

106 x 45 x 40 mm
(4.2 x 1.8 x 1.6 in)

Need more than 12 CTs?
Check out our Multi-Circuit Monitoring Solutions!

Extensive Range of Current Sensors



Solid Core CTs:

  • 30A to 400A
  • 8mm to 32mm ID


Split Core CTs:

  • 15A to 4,000A
  • 10mm to 150mm ID

Rogowski Coils:
  • 100A to 10,000A
  • 250mm to 1,000mm Coil Length

*Split Core CTs and Rogowski Coils include 2.5m leads





Full collage split in half


Highest Circuit Density Module on the Market!

How It Works

Easy, Seamless Integration

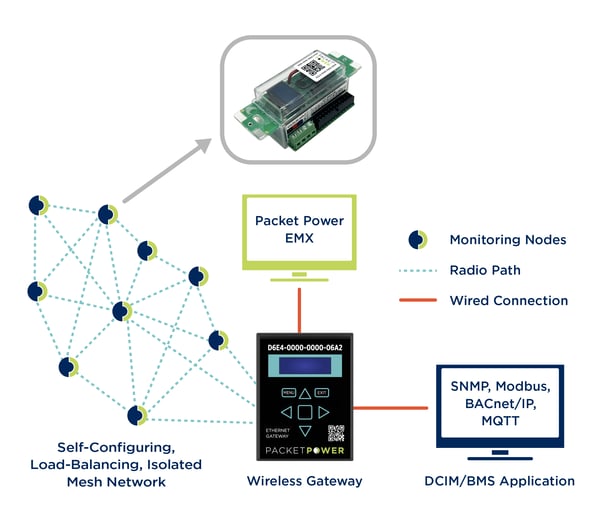

Embedded AC How It Works Diagram

Simple. Secure. Scalable.

Packet Power's Embedded AC Monitors empower you to easily create a fully customized system for your specific needs. With our Total Monitoring Solution, you'll have instant access to data on day one. Our wireless monitoring nodes are simple to install and automatically connect to our proprietary, self-configuring mesh network as soon as they are powered on.

This simple system can be used with our EMX monitoring software or any DCIM or BMS application that supports open protocols such as BACNet, EtherNet/IP, Modbus, or SNMP.



Monitoring Made Easy®

Key Applications
Input_EmbeddedAc



Input

SelectiveCircuits_EmbeddedAc



Selective
Circuits

ATS/STS, HVAC, & Generators | Embedded AC Energy



ATS/STS, HVAC,
& Generators

Existing Switchgear | Embedded AC Energy Monitoring



Existing
Switchgear

Multi-Tenant Submetering | Embedded AC Energy Monitoring



Tenant
Submetering

Data Center P.U.E. | Embedded AC Energy Monitoring



Data Center
PUE
