Wireless DC Power Monitoring

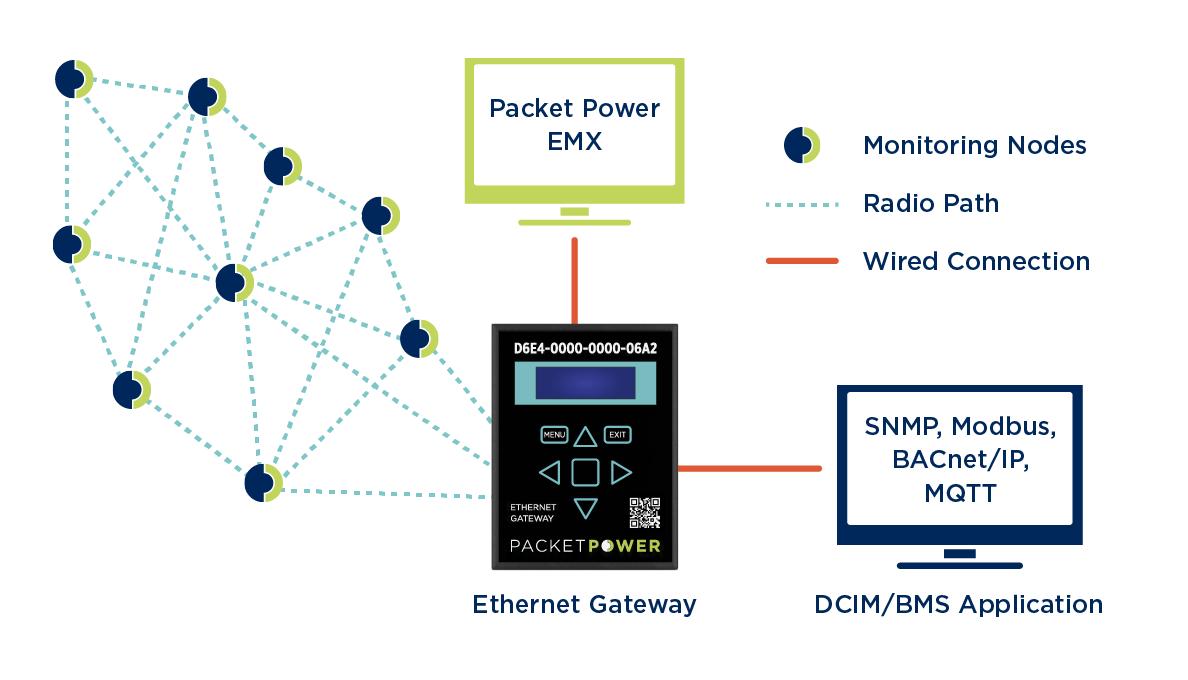

An easy and cost effective way to monitor power on DC circuits. Compact power monitors use Packet Power's unique self-configuring wireless mesh network allowing for rapid deployment of a few or a few thousand monitors.

Capture energy usage on circuits ranging from 20 to 3,000 Amps on 5-24V, 48V and 200-380V DC systems.

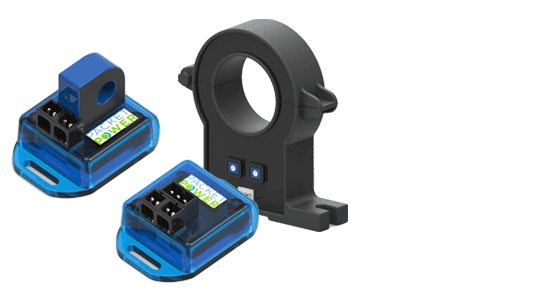

Packet Power wireless DC power monitors

Benefits

Packet Power DC monitors install easily
Installs easily
Packet Power wireless technology is secure
Secure wireless network purpose-built for critical facilities
Packet Power monitoring system lowers ongoing support costs
Fully self-configuring and self-optimizing system lowers ongoing support costs
Packet Power monitoring systems easily scale
Grows easily from 10's to 1,000's of monitors
Packet Power monitors are proven in facilities worldwide
Proven to work in facilities worldwide
Packet Power 48V DC power monitor

48V DC power monitoring made easy


The ideal solution for Telcos to monitor and analyze energy usage from their 48V direct current equipment. These highly compact wireless DC power monitors can be installed at the power panel or at the load end of the circuit. They install in minutes and instantly begin delivering real-time data.

48V DC Features

Packet Power 48V DC monitors measure V, A, W and Wh
Measures V, A, W and Wh at +/- 1% accuracy
Packet Power monitors support SNMP and Modbus protocols
Supports standard SNMP and Modbus protocols
Packet Power monitors support a range of CTs
Supports a wide range of integrated, external, split core and solid core current sensors
Packet Power DC monitors have variety of mounting options
DIN clip, cable tie or adhesive pad mount
Packet Power 48V DC voltage leads, jumpers and CT leads
Variety of voltage lead, voltage jumper and CT leads available

The industry's first wireless 380V DC monitor

The simplest and most cost-effective way to capture energy usage data on circuits ranging from 20 to 3,000 Amps and 200 to 380 Volts.

Packet Power HVDC monitors

HV DC Features

Packet Power wireless monitor measures V, A, W and Wh
Measures V, A, W and Wh at +/- 1% accuracy
Packet Power wireless monitors cost less
One voltage sensor can support all circuits that share a common voltage source
Packet Power monitors have a variety of mounting options
DIN clip, cable tie or adhesive pad mount
Packet Power monitors integrate via SNMP or Modbus
Supports standard SNMP and Modbus protocols
Packet Power DC voltage and CT leads
Variety of voltage and CT leads available

Wireless DC Monitors

Models are available with integrated current sensors for circuits 65A or under as well as a full range of external current sensors. Split core current sensors make installation easy and non-disruptive.

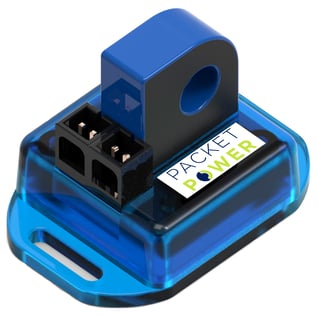

Packet Power DC monitor with integrated CT (intct2)



Current Monitor:  Integrated CT

35 or 65 Amp sensors

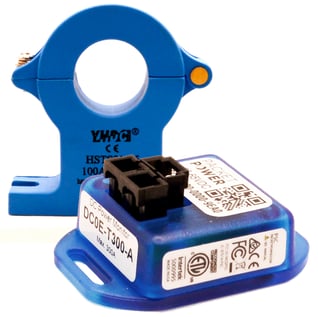

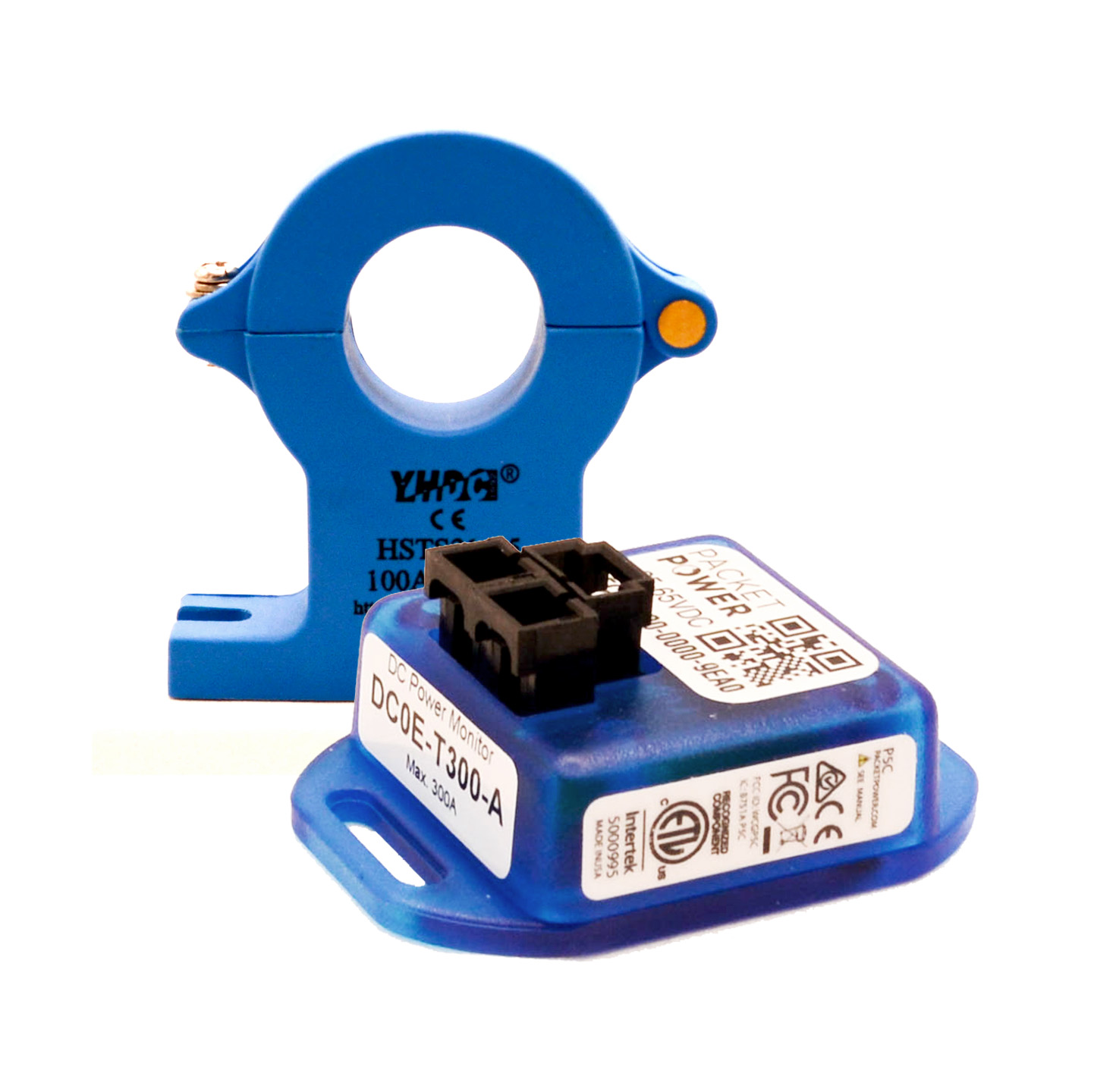

Packet Power DC monitor with external split core CT (external)

Current Monitor:  External CT

35 to 3,000 Amp sensors and split or solid core CTs
Packet Power voltage monitor (hvdc)



Voltage Monitor

Supports 100 to 400V. Provides voltage data for all units utilizing a shared voltage source. Voltage monitors are not required on 48V systems.
Packet Power HV DC display module (current module)



Display module

LED display for HV DC installations
