Fujitsu London Data Centre
Using wireless monitoring to accurately allocate energy usage and improve load distribution
In Fujitsu’s Data Centre in London, it is not just the company’s own data that is managed but also that of hosted customers. The requirements for computing capacity and data volume are different from customer to customer, which means, of course, that the underlying energy costs of the services also vary. To be able to provide every customer with an accurate itemized bill of power consumption, Fujitsu relies on a wireless monitoring system from Packet Power supplied by Daxten.
This system wirelessly records all power parameters such as volts, amps, watts, frequency, power factor, apparent power and, of course, consumption data and breaks it down from the room-based distribution level to rack, PDU, and device level. Another key goal of the Fujitsu data centre specialists was to improve load management of the existing power and cooling resources and boost efficiency even more. One of the main reasons they opted for the Packer Power solution was that, in addition to monitoring power, it also tracks environmental parameters like temperature, differential pressure, and humidity. Extensive recording of this data makes it possible for consumption, capacity utilization, and environmental conditions to be calculated, analyzed and ultimately continuously optimized.
THE SMART WAY TO MONITOR POWER
TRULY SIMPLE INSTALLATION
“When Daxten showed us the wire-free monitoring solution in a testing environment for the first time, it certainly wowed me,” said Simon Levey, Data Centre Development Specialist at Fujitsu UK, summarizing his impressions of how the monitoring system’s metering and sensor modules were activated, automatically configured themselves, began taking measurements, and sharing the data automatically in a wireless network.
Unlike conventional monitoring solutions, the individual modules in the Packet Power system are not physically connected to one another by cables or a bus system, but can be placed anywhere in relation to one another with no need for cabling. The power and environmental data collected by the power metering and sensor modules is recorded and transmitted to one or more gateways wirelessly. The gateways convert the data and transfer it via SNMP or Modbus to a dedicated user interface or, if necessary, to an overarching Data Centre Infrastructure Management (DCIM) or Building Management System (BMS) application.
LOW-COST IMPLEMENTATION AND
“What really won us over was the manufacturer’s idea of integrating the metering module for recording the power data right into the power cable. It simply replaces the cable for our active hardware and the rack PDUs and is ready for operation as a monitoring unit,” according to Simon Levey. Fujitsu’s London Data Centre currently has 284 monitoring units and gateways in operation. More modules are continuously being added in collaboration with Daxten the data centre specialist— the goal is to retrofit all of the racks with the Packet Power solution to make it the standard. For Simon Levey and his team, it is important that the retrofit and future enhancements can take place step-by-step and exactly in line with needs. This reduces pressure on the budget and lowers follow-up costs. The technicians like the fact that installation mainly involves positioning the environmental sensors or replacing the power supply cables for the Packet Power wireless devices.
Data Center, combined
co-location and corporate
Fujitsu is the leading Japanese information and communication technology (ICT) company offering a full range of technology products, solutions and services. Approximately 170,000 Fujitsu people support customers in more than 100 countries. We use our experience and the power of ICT to shape the future of society with our customers.
Fujitsu Limited (TSE:6702) reported consolidated revenues of 4.4 trillion yen (US$47 billion) for the fiscal year ended March 31, 2013. For more information, please see www.fujitsu.com.
Daxten (Packet Power’s European partner) was founded in 1994 as Dakota Computer Solutions. As a manufacturer and distributor of innovative solutions, Daxten is at the fore-front of promoting energy efficiency within the data centre. The company offers cutting edge cooling optimization (CoolControl), power distribution and monitoring solutions which improve the resource efficiency and reliability of the data centre.
Daxten is headquartered in London and Berlin. For further information please visit www.daxten.com.
Energy allocation by customer
Energy and environment surveillance and alerting
Energy usage analysis
“When Daxten showed us the wire-free monitoring solution in a testing environment for the first time, it certainly wowed me.”
Simon Levey, Data Centre Development Specialist, Fujitsu, UK

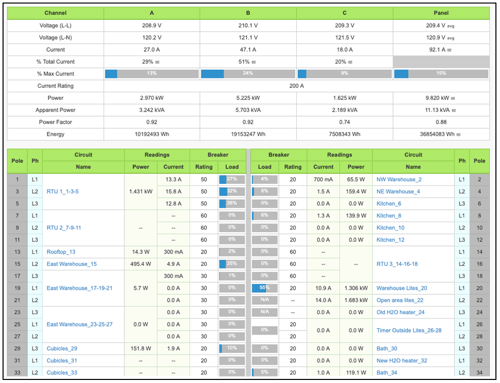

An administration tool integrated in the system reduces the workload of system operators: it processes the measurements of the monitoring modules to create actual and trend reports on power usage and environmental parameters. System operators control consumption and distribution loads as well as temperature, pressure, and humidity values in the room and at every rack level via graphical dashboard displays or in table format.
EMX Energy Portal allows customers to create custom dashboards that can be easily accessed as unique web page links.
Don’t have time to read the whole case study?
How about a copy to-go? Just fill out this quick form and read it when it's convenient for you.
INTUITIVE USER INTERFACES
REAL TIME ALERTS
The Fujitsu data centre specialists really appreciate that the monitoring solution also functions as a proactive early warning system, for example, in the event of a problematic temperature change in the rack or fluctuating power supply via a PDU strip. If limits defined ahead of time with the administration tool are even slightly exceeded, the monitoring system reacts immediately and automatically triggers warnings. Countermeasures can then be initiated before heat-related or power-related system disruptions can even occur. This means that Fujitsu is ideally equipped to handle any situation.

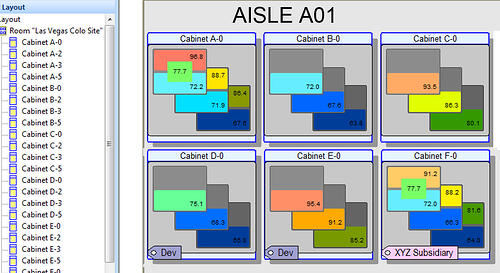

Real time environmental data results in detailed facility wide images that show
temperature down intra rack resolution using 3D heat maps.
OPTIMIZE AVAILABLE RESOURCES
“We don’t just use the solution as a metering and monitoring tool or early warning system, we also use it to identify where power reserves still exist or if power and cooling resources are limited in the individual racks. This way, we know exactly how much active hardware we can install in the cabinets and are able to distribute the loads appropriately—and this creates efficiency,” sums up Simon.
The EMX Portal policy and alerting screens to set parameters for environmental and
power data that when exceeded immediately notify the operator.
SYSTEM COMPONENTS USED
SMART POWER CABLES
Provide an easy wireless system to gather power and energy consumption data from any cabled device.
Gathers data from up to 100 monitors
E306 ENVIRONMENTAL MONITOR
Supports up to 6 temperature probes plus humidity or differential pressure (air flow)
Offers easy access to energy analysis, real-time data and alerts
About Packet Power
Packet Power develops and manufactures wireless power and environmental monitors and associated cloud-based data services to make buildings smarter.
By focusing on products that are easy to install and manage, Packet Power makes it easier and less expensive for critical facilities managers to get the information needed to lower costs, avoid outages and improve operational effectiveness.
