Wireless
Branch Circuit Monitoring

Monitoring Made Easy^®

Take control of your energy management with Packet Power’s innovative branch circuit monitoring solutions. Whether you're managing a single power distribution panel or a multi-panel PDU, our technology helps you avoid unplanned outages, balance loads, identify underutilized power, and track PUE with precision. With our Monitoring Made to Measure approach, your system arrives fully configured and assembled—ready for quick and hassle-free installation. Save time, reduce costs, and gain the insights you need to optimize energy usage and extend the life of your equipment.

Download Brochure

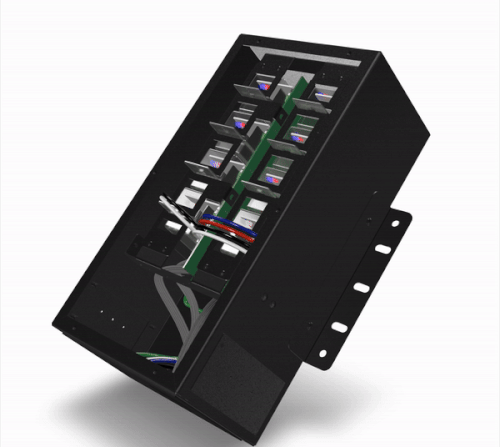

Packet Power Branch Circuit Monitoring | BGP64

Lower costs & cut installation time in half
No bulky network cables or cumbersome IP switch configurations
Fits panels from any vendor—inline, side-by-side, DIN-mounted, or ad hoc
Out-of-band wireless monitoring data is kept separate from your business data

Support any combination of single & three-phase circuits
Can be wall-mounted, directly attached, or installed under the floor
Access your data via SNMP, Modbus, BACnet/IP, MQTT, or our EMX software

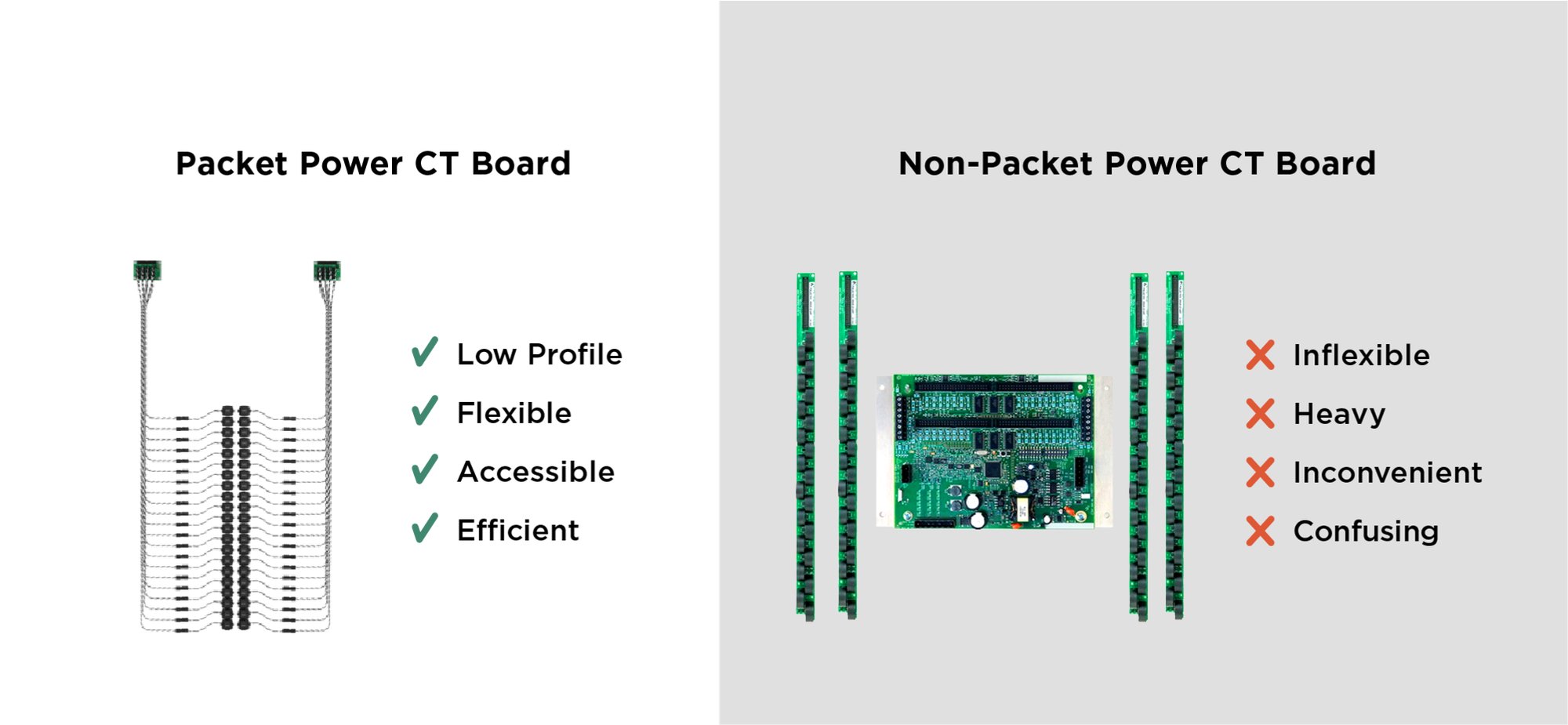

Includes pre-wired, pre-configured split-core CTs in a flexible wire harness

BGP64

310 x 160 x 115 mm
(12.2 x 6.3 x 4.5 in)

Supports 30-64 CTs

Great Option for:

30-Pole Side-by-Side Panel
42/48 Pole Side-by-Side Panel
Inline Panel up to 64 CTs

BGP128

310 x 302 x 115 mm
(12.2 x 11.9 x 4.5 in)

Supports 65-128 CTs

Great Option for:

Two 42/48-Pole Side-by-Side Panels
Inline Panel up to 128 CTs

BGP192

445 x 302 x 115 mm
(17.5 x 11.9 x 4.5 in)

Supports 129-192 CTs

Great Option for:

Three 42/48-Pole Side-by-Side Panels
Four 42/48 Pole Side-by-Side Panels
Multiple Inline Panels up to 192 CTs

Fujitsu

"The dependable accuracy and frequency of the metered IT load data, provided by Packet Power's solution, enables us to ensure that our loads are always balanced."

-Simon Levey, Head of Data Centre Development UK, Fujitsu

Read a Success Story

Packet Power's Monitoring Made to Measure approach ensures your monitoring system fits your needs with no field configuration required. We will build to your specifications with no added cost, including:

Voltage Source Type, & Quantity
CT Type, Rating, & Quantity
Harness Configuration
Custom Wire Lengths & Colors
Wire Exit Location
Over-Current Protection
Panel Mapping

Gateway Communication Diagram

Simple. Secure. Scalable.

Packet Power's Branch Circuit monitors empower you to easily create a fully customized system for your specific needs. With our Total Monitoring Solution, you'll have instant access to data on day one. Our wireless monitoring nodes are simple to install and automatically connect to our proprietary, self-configuring mesh network as soon as they are powered on.

This simple system can be used with our EMX monitoring software or any DCIM or BMS application that supports open protocols such as BACNet, EtherNet/IP, Modbus, or SNMP.
