High value individual and selective circuit monitoring

Easily and affordably add power monitoring to existing equipment only where needed, and configured exactly as required. Whether you need to measure the main infeed circuit to a panel or monitor several circuits on a switchgear, our wireless multi-meter monitors give you the flexibility you need to measure what matters.

Built to your specification to cut installation time in half:

  • Voltage source type and quantity
  • Voltage lead color and length
  • CT type, rating and quantity
  • CT lead length
  • Wire exit location
  • Over-current protection
  • Current-only or full power or mixed

Benefits

Cost effective
Feature Image
No communications cables or configuration
Pre-wired, pre-configured kits install in minutes
Use anywhere including panelboard input feeds, select panelboard circuits, RPPs, switchgear, HVACs, generators and other high energy loads
Compatible with any existing hardware and data is accessible via SNMP or Modbus
Secure purpose-built wireless protocol proven in data centers worldwide

Selective Circuit Monitoring Options




PGXXX

Circuit type:  Full power
CTs:  1-3

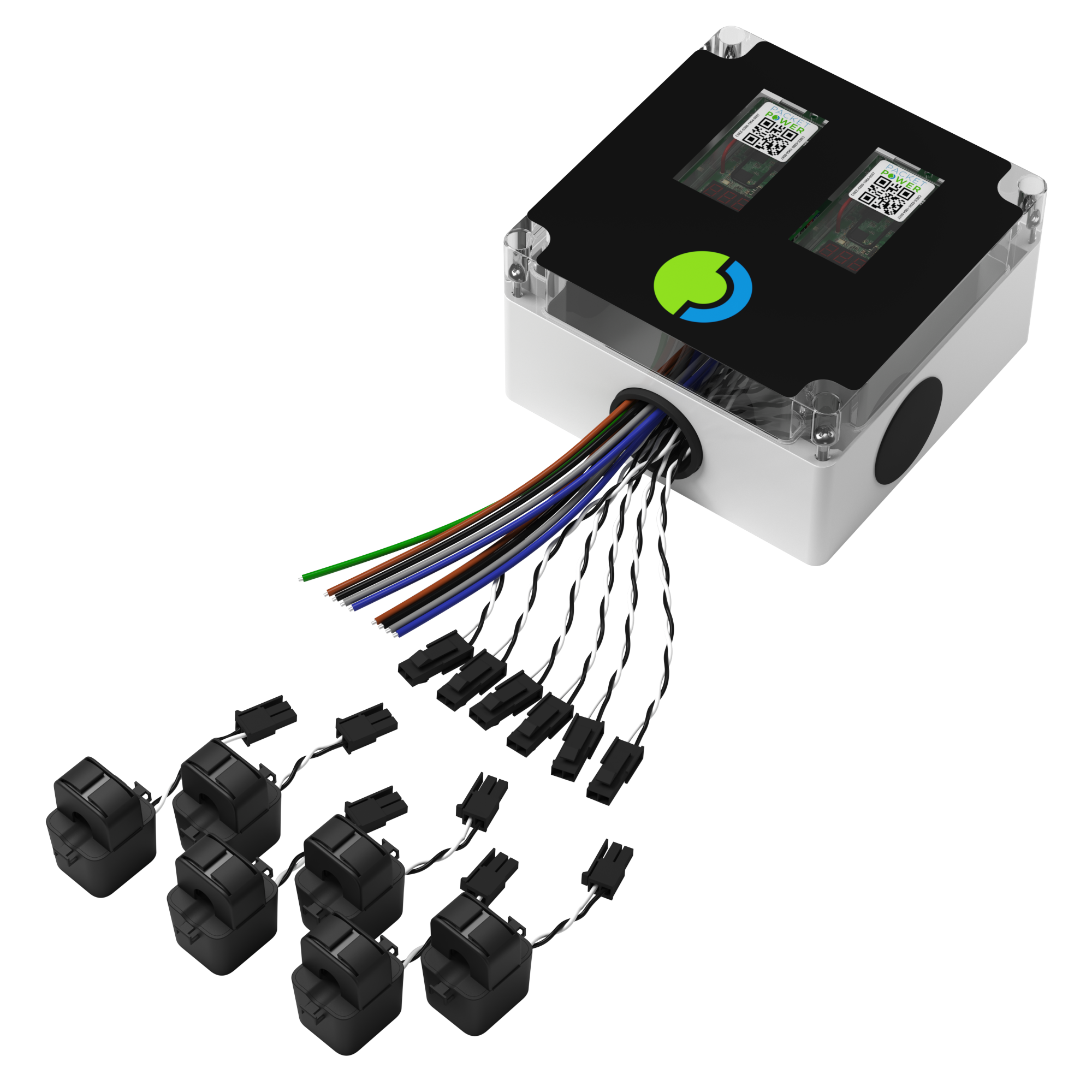

BG02

Circuit type:  Full power, current-only, or mixed
CTs:  1-12

BG04

Circuit type: Full power, current-only, or mixed
CTs:  2-21

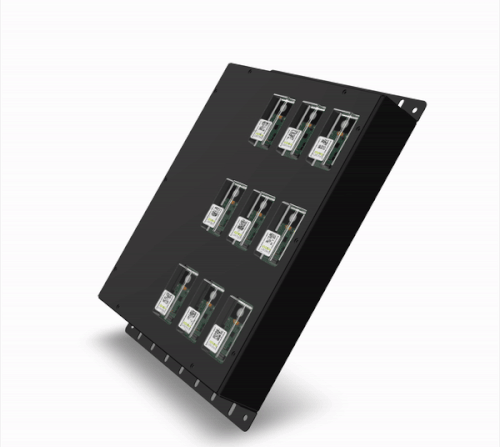

BG06 and BG09

Circuit type:  Full power
CTs:  4-27

Selective Circuit Features

Supports 10­ to 6000A single­- and three­-phase circuits; 100 to 600V
Feature Image
Multiple formats monitor 1 to 27 circuits -- full power, current-only, or mixed
Feature Icon
Measures V, A, VA, W, PF, Wh, THDi, THDv, Hz
Feature Image
Comes ready to install with CTs, CT leads, voltage connectors, ground wire and enclosure with cover
Feature Icon
Local LED display
Feature Image
Wireless transmission of all monitoring data
Feature Icon
Installs without disconnecting cables

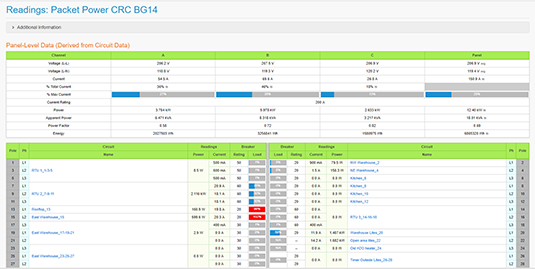

Sophisticated panel mapping capability available

Part of multi-circuit monitoring installation involves defining the circuit mix and making that information usable in your monitoring application.

Our panel editor makes it easy to specify the amperage and number of poles per circuit and define user-friendly circuit names.

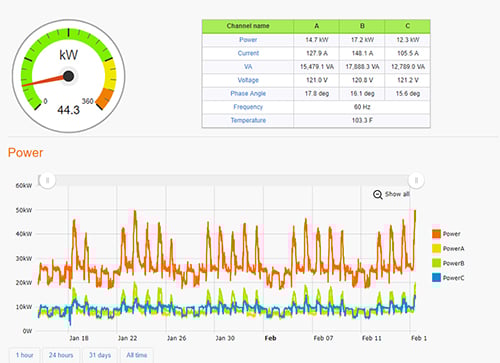

EMX dashboard

... and instant access to data

Data begins to flow immediately upon installation to your existing BMS (via SNMP or Modbus) or the Packet Power EMX Energy Portal. Unlike many monitoring systems, there’s no need to wait for expensive consultants to customize the system before you can gain value from the monitoring information.

Selective Circuit Monitoring Applications

  • Panelboard input feeds
    and selective circuits
  • Tenant sub-metering
  • HVAC, generator and other
    critical system tracking

Find the best way to monitor what matters Contact Us
