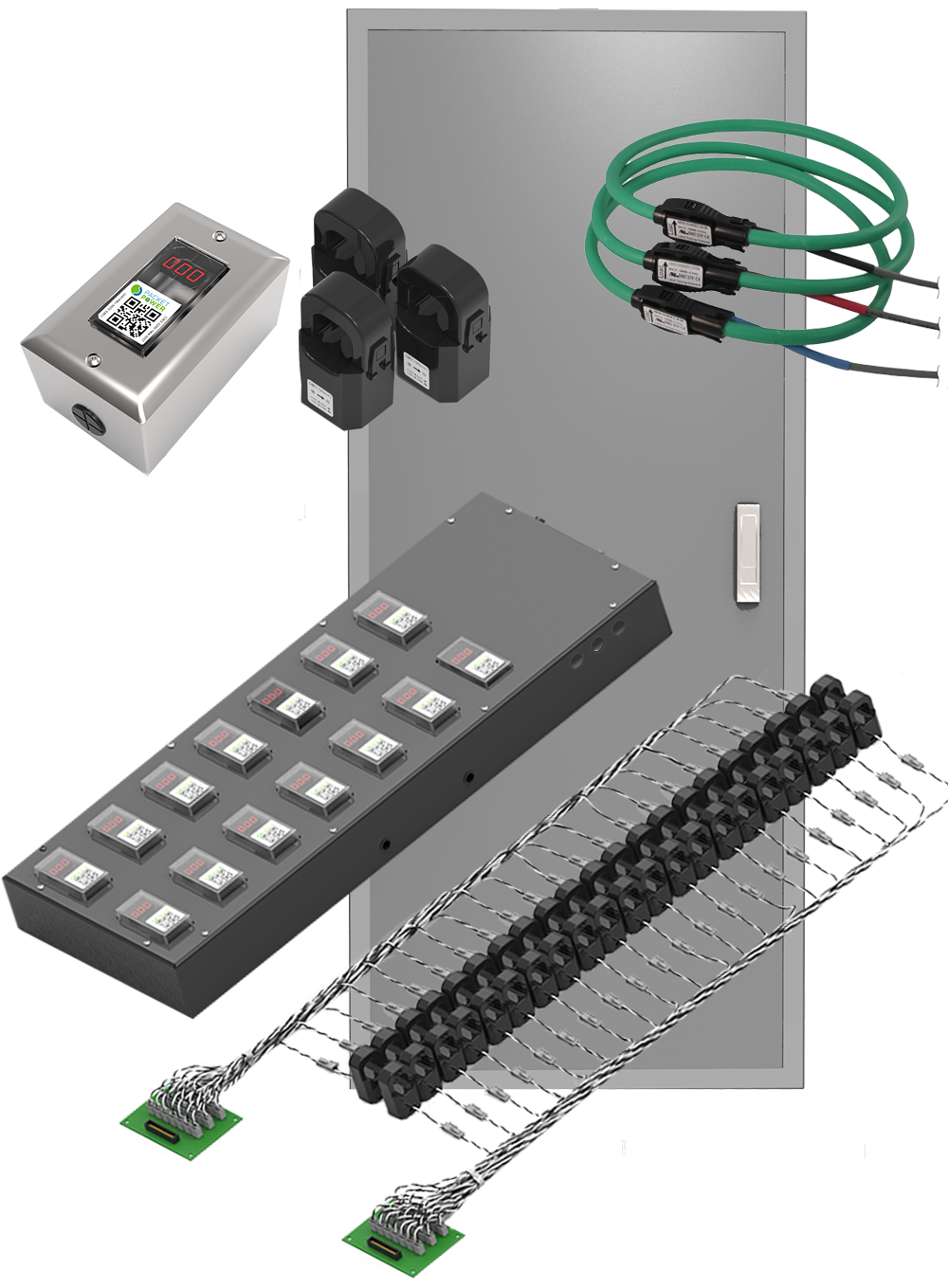

Easily add monitoring to individual circuits, switchgear and entire panels

Whether you need to measure main feeders to calculate PUE, monitor just a few branch circuits to allocate costs, or track an entire panelboard to balance loads more effectively, our wireless panel monitoring solutions give you the flexibility you need to measure what matters.

Our self­-configuring wireless network technology makes installation faster and easier than legacy monitors and means you’ll be online receiving useful monitoring information immediately after installation.


Benefits

Cost effective
Feature Image
No communications cables or configuration
Simple, non­-technical installation
Use anywhere including branch circuits, RPPs, panelboards, switchgear, CRAC units and ATS's
Compatible with any existing hardware and data is accessible via SNMP or Modbus
Secure purpose-built wireless protocol proven in data centers worldwide

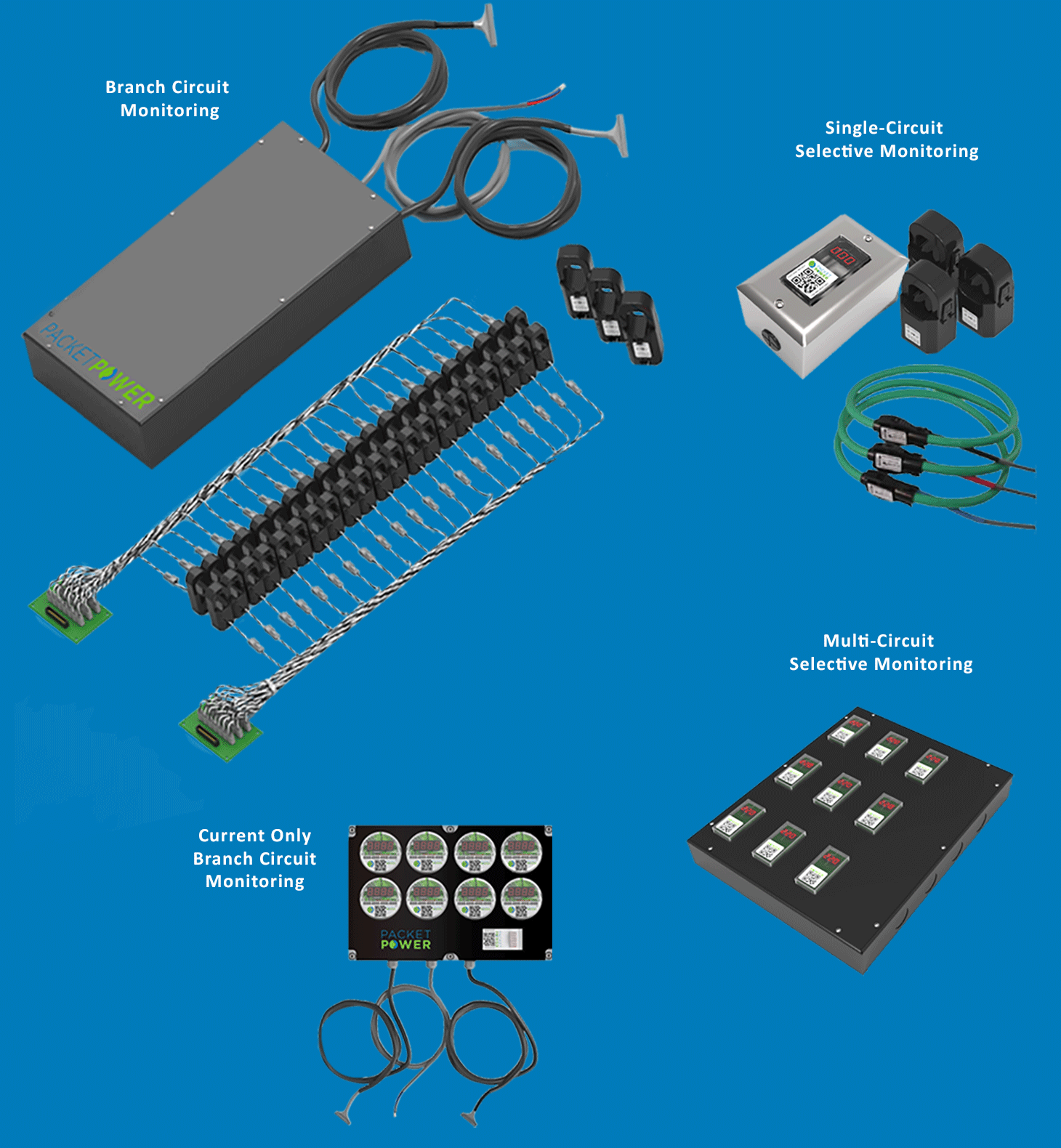

Selective Circuit Monitoring


High-value Circuit Monitoring

A full wireless power monitor capable of measuring utilization on high-value circuits in ATS's, Gen sets, CRAC units, RPPs and switchgear. Comes with everything needed for simple installation including CTs, CT leads and connectors.


Multi­-circuit Power Monitoring

Whether your requirement is to monitor entire switchgear panels or certain branch circuits on 42­-pole panels, our multi­meter systems provide a cost-­effective means of tracking usage on 2 to 27 circuits. The meters are mounted in a slim enclosure on or next to the metered equipment. CTs, CT leads and connectors are included.

Selective Circuit Features

Supports 10­ to 5000­ Amp single­- and three­-phase circuits; 100 to 480V
Feature Image
Multiple formats monitor a few to 42 circuits
Feature Icon
Local LED display
Feature Image
Wireless transmission of all monitoring data
Feature Icon
Installs without disconnecting cables
Measures V, A, VA, W, PF, Wh, THDi, THDv, Hz

Branch Circuit Monitoring


Full Power Monitoring

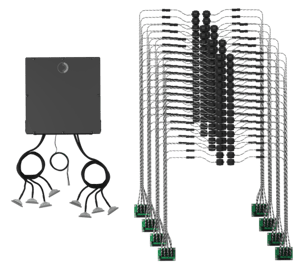

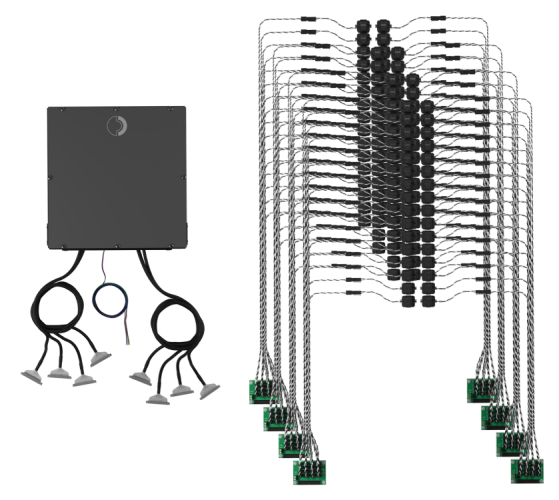

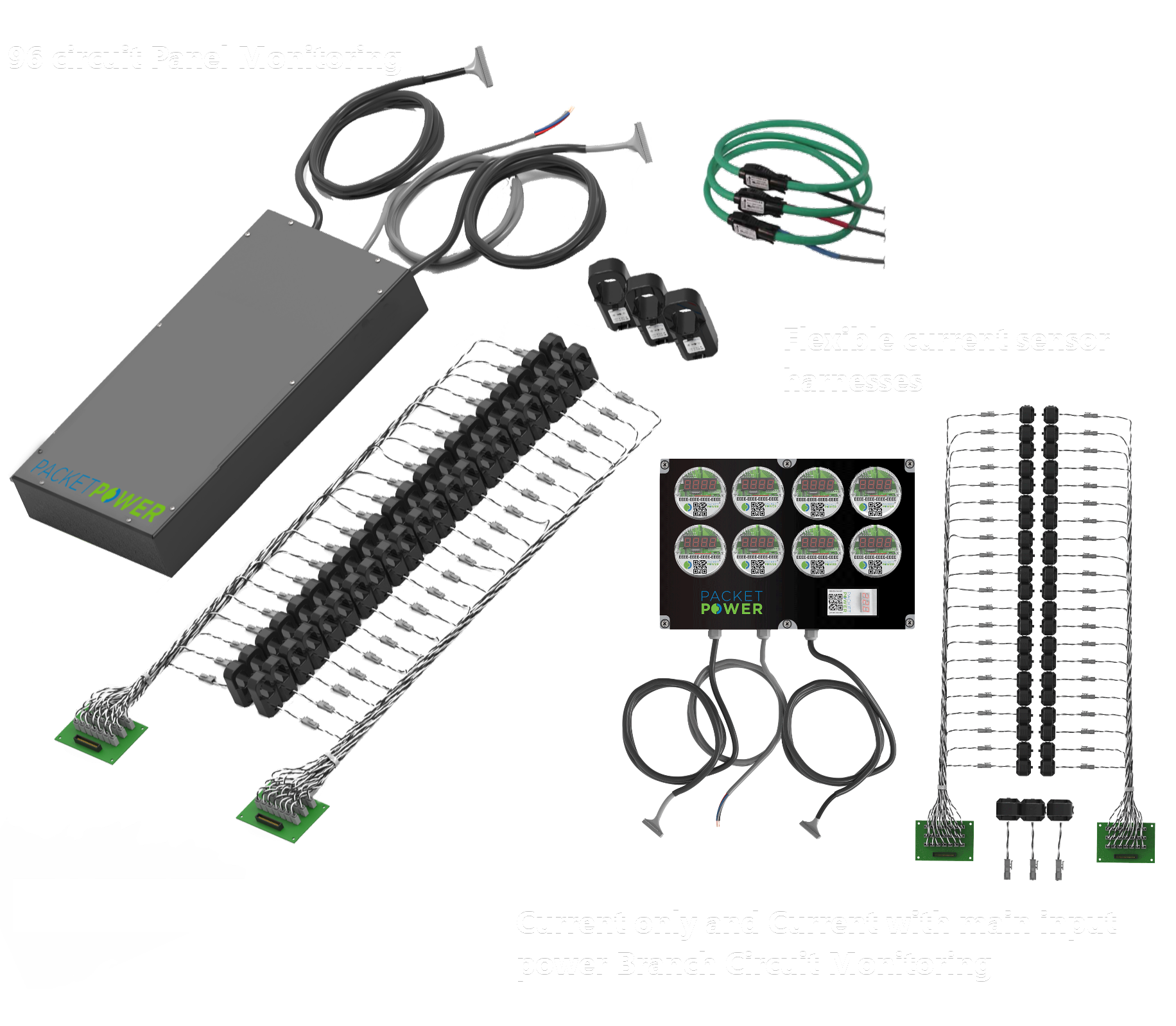

A simple solution for adding monitoring to existing panels, RPPs or PDUs. Monitors any combination of single-, two- and three-phase circuits on up to 96 circuits. Flexible current sensor harnesses and a simple configuration utility deliver an ideal retrofit solution that can save up to 11 hours and over $1,500 on installation time and expense.


Current Only Monitoring

A compact, cost-effective solution for monitoring current on up to 48 circuits on any panel, RPP or PDU. It costs 40% less per circuit than full-power metering and is ideal for operational management. Flexible current sensor harnesses and a simple configuration utility make installation fast and easy. Also available with input power monitoring.

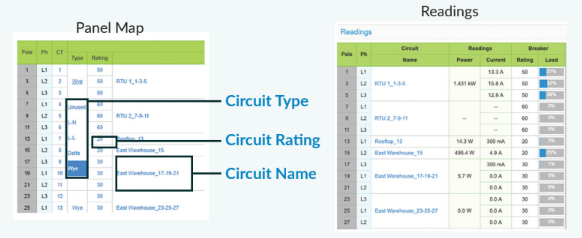

... with sophisticated panel mapping capability

A significant part of the branch circuit monitoring installation involves defining the circuit mix on a particular panel and making that information usable in your monitoring application.

Our panel editor makes it easy to specify the amperage and number of poles per circuit. If you have panels with similar circuit maps, you can easily apply panel definitions from one panel to another. And if you need to access data via SNMP or Modbus, we make that easy too.


Branch Circuit Monitoring Features

Power versions measure V, A, VA, W, PF, Wh, THDi, THDv, Hz
Works with PDUs, RPPs or panelboards from any vendor
Monitors 100 to 480V circuits
Can be wall-mounted, directly attached or installed under the floor
Includes pre-wired, pre-configured split-core CTs in a flexible wire harness
Local LED displays V, A and W on main input circuit and A on branch circuits
Fujitsu_86
Featured Case Study

Fujitsu's London Data Centre is always well balanced

Wireless panel monitoring enables the balancing of loads for Fujitsu's London Data Centre allowing for infrastructure updates.

Read More Ú

Panel Monitoring Applications

  • Add monitoring to existing panelboards, remote power panels, floor PDUs and switchgear
  • High­-level usage tracking to
    drive metrics such as PUE
  • HVAC and other critical
    system tracking
  • Selective branch
    circuit monitoring
  • Multi­-tenant metering

Find the best way to monitor what matters Contact Us


Instant access to data

Data begins to flow immediately upon installation to your existing BMS or the Packet Power EMX Energy Portal. Unlike many monitoring systems, there’s no need to wait for expensive consultants to customize the system before you can gain value from the monitoring information.
